HM-ZD350D High Speed Automatic Rigid Box Machine
Shelf time：
2021-06-07 08:24:01
Browse times：
2208次
Guangdong Hongming Intelligent Joint Stock Co., Ltd. Ltd is the first and greatest manufacture in China on Automatic Rigid Box Making Machines. For 19 years, we have been dedicated in traditionally manual box making.

Details of the product
Introduction of commodity video

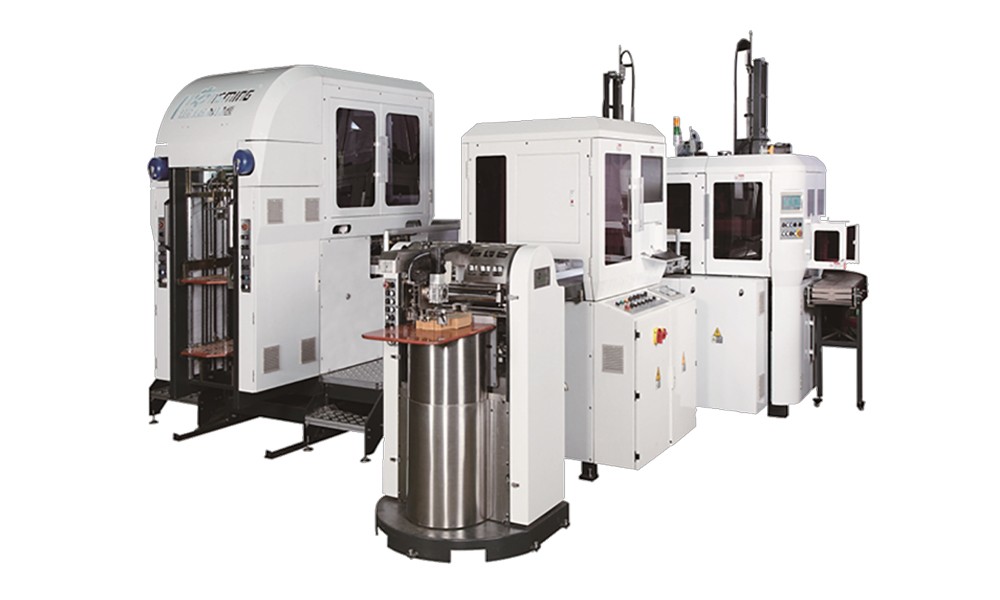

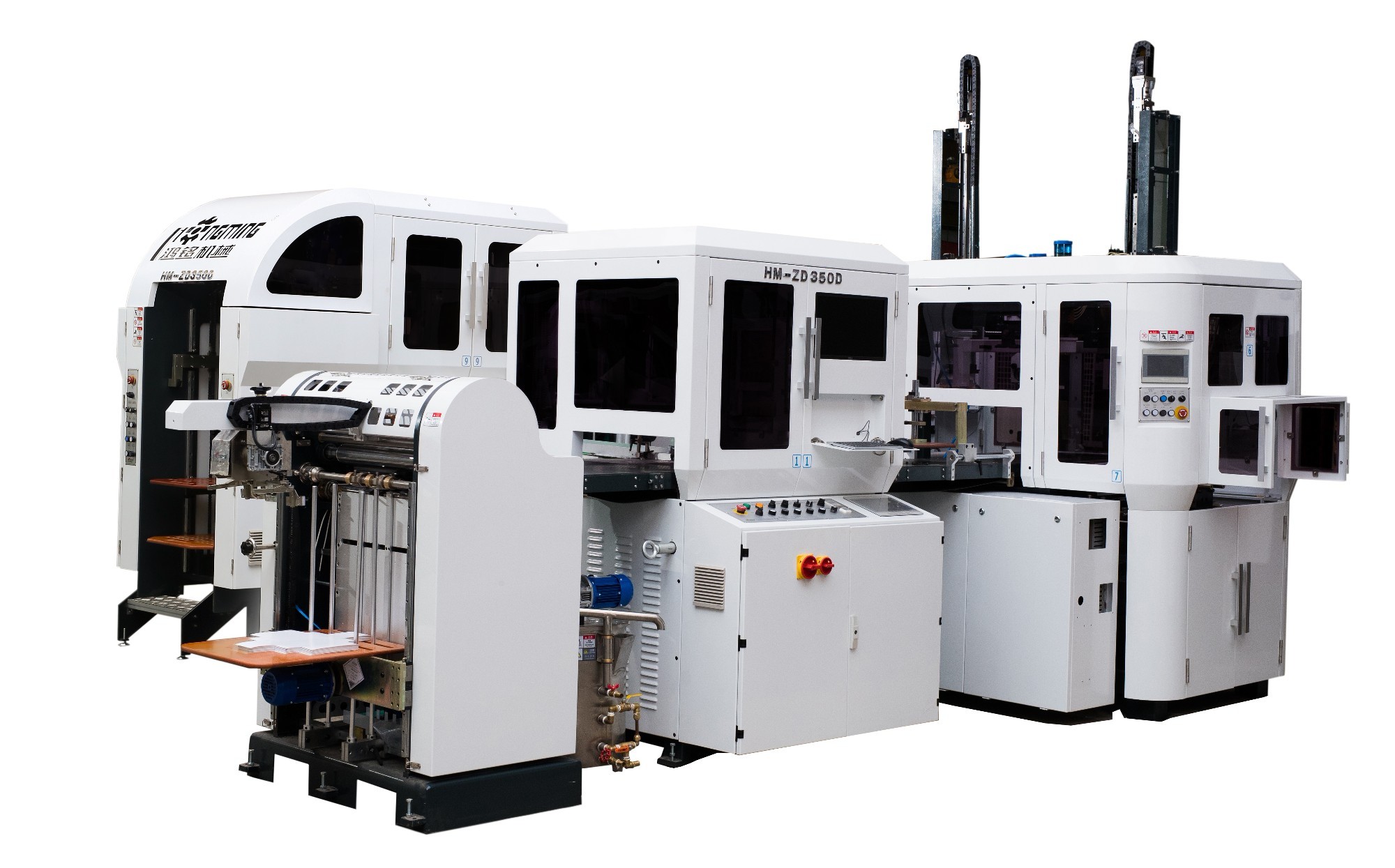

HM-ZD350D High Speed Automatic Rigid Box Machine, is the one of the most advanced fully auto box machines by our company. It is suitable to make various types of rigid boxes for mass production, such as jewelry boxes, mobilephone boxes, gift boxes, cosmetic boxes, watch boxes, slanting boxes,etc. and maximum Length 350mm, maximum width 250mm which covers a larger range compared to the previous machines and meets better the market. And it is upgraded also by its exterior with more safety and beauty.

HM-ZD350D adopts PLC and man-machine control, camera tracing system, and can automatically feed coverpaper, feed greyboard, paste four corners, spot greyboard, lift box, wrap box, fold corner edges and form box.

The feeder, the gluer and the conveyor are driven by servo which has continuously variable transmission and enjoys high accuracy, easy adjusting, and less time consumption. Double color conveyor can avoid changing to other color belt, which is Hongming’s patent. The spot unit adopts Germany camera with 5 million pixel and robot arm to pick and spot the greyboard, enhancing the spotting accuracy to ±0.05mm. The forming unit employs Germany REXROTH linear slider and virtual cam driving system, guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and corner edges.

Features and function

1. Suit to all kinds of rigid boxes in mass production

2. Computer control with error auto stop and display (optional)

3. Auto error stop and dispiay

4. Automatically feed paper and greybeard

5. 24-hours control for glue pre-heating

6.Wrapper can input 300 product formula

7. Automatically cut and heat tape to paste the greyboard box’s quad stayer (four corners), with independent man-machine control

8.Adopt YASKAWA servo and PLC

9. Spotter by camera tracing system and SCARA (Selective Compliance Assembly Robot Arm) (spotting inaccuracy ±0.05mm)

10. Wrapper can automatically and continually lift box, wrap paper, fold corner edge, fold in and form box

11. Automatic control system for glue viscosity(optional)
